Pneumatic Mixing Agitator Storage Tank 500L SUS316 / 304 Stainless Steel
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | LIANHE |
| Certificación: | CE, TUV, SGS |
| Número de modelo: | PMC-500 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 sistema |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | Empaquetado de la película de la caja/de la burbuja de la madera contrachapada |
| Tiempo de entrega: | 15 días laborables |
| Condiciones de pago: | T/T, L/C, D/A |
| Capacidad de la fuente: | 100 sistemas por mes |
|
Información detallada |
|||
| Material: | 304 de acero inoxidables/316L | Capacidad: | 50 - 20000 litros modificados para requisitos particulares |
|---|---|---|---|
| Proceso: | El tanque de almacenamiento | Componentes de la base: | Recipiente del reactor |
| Función adicional: | Calefacción/enfriamiento/que se mezcla | Diseño: | Cubierta abierta o cubierta sellada |
Descripción de producto

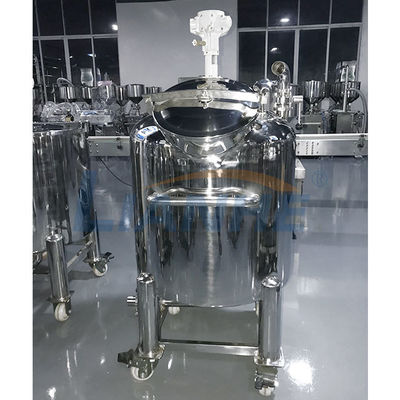

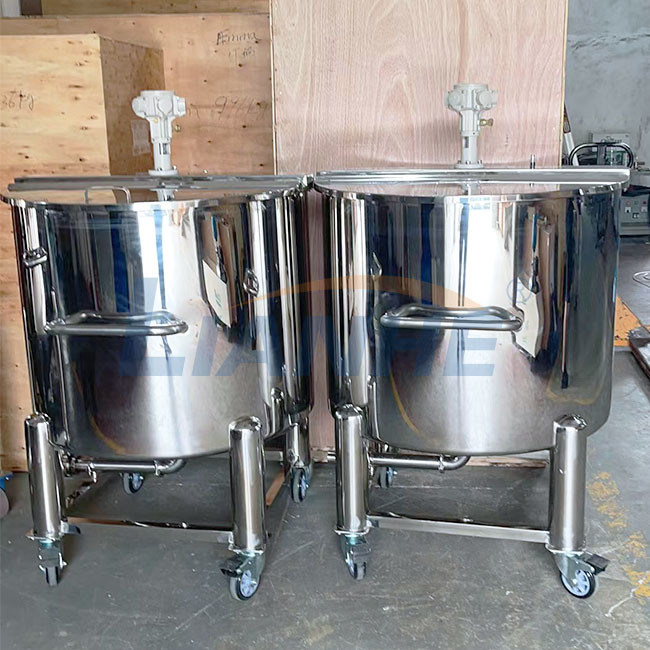

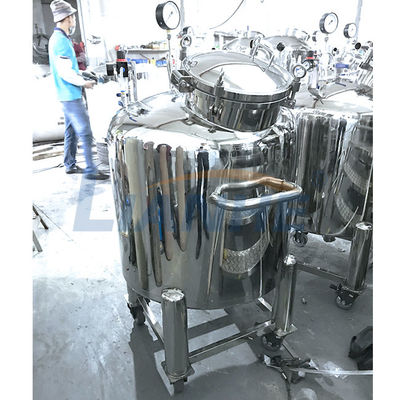

Pneumatic Mixing Agitator Storage Tank 500L SUS316 / 304 Stainless Steel
Product Description:
According to storage capacity, the storage tanks are classified into tanks of 100-15000L. For storage tanks with storage capacity of more than 20000L, it is suggested to use outdoor storage tanks. The storage tank is made of SUS316L or 304-2B stainless steel and has good heat preservation performance. The accessories are as follows: inlet and outlet, manhole, thermometer, liquid level indicator, high and low liquid level alarm, fly and insect prevention spiracle, aseptic sampling vent, meter, CIP cleaning spraying head.

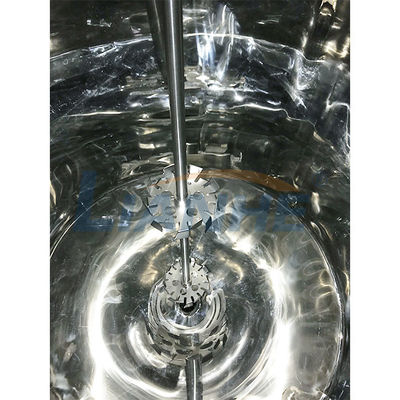

For some products that cannot stay still for long, we can add an agitator to mix the products slowly during storage.
Product Structure:
1.Consisting of inner tank body and outer covering layer, among which is heat preservation material.
2.material of tank is good quality stainless steel 304 or 316L.
Standard scheme:
1.Quick open type manhole
2.Numeral indication type thermometer
3 .T type cleaning head
4. lever discharge valve
5.Adjustable conic supporting feet
Product Application:
1. Storage tank is special for liquid products ,such as oil ,perfume ,water and other liquid products .
2. With reference to JB/T4735-1997
3. Stainless steel surface should be removed the oil, the place which can’t be polished will be acid cleaning and passivation.
4. Polished 360°.
6. Meet GMP standard.
Product Parameters:
| working voume | 50L-5000L |
| Material | SUS304 or SUS316L |
| Mirror polishing | Internal and external sanitation mirror polishing≥330 mesh |
| Lid | Open lid or sealed lid |
| Bottom | Four wheels |
| Discharge | Bottom ball valve to discharge |
Type Option:
1. Movable Open Lid Storage Tank
2. Movable Sealed Lid Storage Tank
3. Movable Pressure Storage Tank
4. Movable Heating Sealed Storage Tank(or Open Lid)
5. Movable Mixing Storage Tank
6. Constant Temperature Storage Tank
7. Fixed Sanitary Grade Storage Tank (With Mixer)
Product Details:
Our Servers:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
